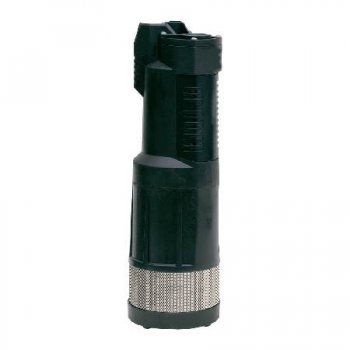

Dabs Divertron 1200 M Pressure Pump Auto Start
The Dabs Divertron 1200 m is the ideal pump for most domestic or small commercial installations. The pump is installed inside the tank and has an stainless steel screen filter. The pump is easy to use and very reliable with dry run protection built in making this a very user friendly pump
DIVERTRON X 1200 M
TECHNICAL DATA
Operating range: from 1 to 5,4 m3/h with head up to 46 metres.
Pumped liquid: clean, free of solids and abrasives, non-aggressive.
Liquid temperature range: from 0 °C to +35 °C.
Max. immersion depth: 12 metres.
Motor protection class: IP 68.
Motor protection rating: F.
Installation: fixed or portable, vertical position.
Operation: Manual or automatic with electronic ON/OFF (continuous duty with totally submerged pump).
Discharge port diameter: 1”.
Pump maximum diameter: 150 mm.
Cable length 15 Metres
APPLICATIONS
Multi-impeller submersible pump with integrated electronics for automatic switching on and off. Ideal for use in rain water systems and watering networks, to pump water from cisterns, ponds, and wells, and for other applications requiring high pressure. Available with 3 or 4 impellers. Built-in pressure switch, control circuit board and sensor. Dry run protection. Built-in non-return valve at the delivery. Easy to use and highly reliable.
Suitable for pumping clean waters. Very efficient motor cooling, allowing the pump to also be used only partially submerged. Supplied with stainless steel suction filter or stainless steel connection fitting for use with suction kits, particularly suitable for tanks with debris or dirt lying at the bottom. A version complete with suction kit is also available.
CONSTRUCTION FEATURES OF THE PUMP
Corrosion and oxidation resistant material. Stainless steel debris strainer.
CONSTRUCTION FEATURES OF THE MOTOR
Submersible type continuous duty asynchronous motor. Thermal overheating protection. Wear-resistant motor shaft.
- Model: DAB1200M
- 0 Units in Stock
- Manufactured by: Dab Pumps
